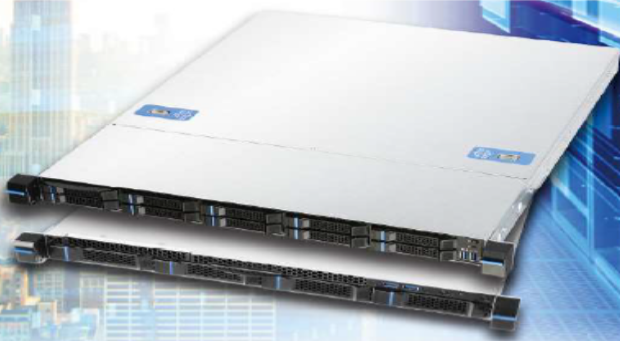

SERVER 1U RACK MOUNT

COMPUTER WORKSTATION / SERVER 2U RACK MOUNT




  • Processor: Intel® Xeon® w7-Series xxxx
  • Cooler: CPU cooler
  • Motherboard: C621 motherboard
  • RAM: 64 GB / 128 GB Reg ECC DDR5-5600 MHz memory
  • Hard Disk: 4 × SATA SFF-8680 OR 10 × SFF-8680
  • Power Supply: 2U OR 1+1 Redundant
  • Cabinet: 1U Rack Tower Black Cabinet with fans

    • 2.5" 8-port 12Gbps SAS/SATA Backplane with 4-port Tri-mode

  • P/N: 380-21703-0110A1
  • Dimensions (W x H): 142.0 × 80.0 (mm)
  • Backplane Type: Passive
  • HDD Interface: 2 × SFF-8643 (MiniSAS HD), 4 × OCuLink
  • HDD Interface ID: 8 × SFF-8639
  • SGPIO Interface: N/A
  • Features: Temperature Monitoring
    • 2.5-inch 8-port 12Gbps SAS/SATA Backplane with 4-port Tri-mode

    2.5" 8-port PCIe Gen3 NVMe Backplane

  • P/N: 380-21703-0130A0
  • Dimensions (W x H): 142.0 × 80.0 (mm)
  • Backplane Type: Passive
  • HDD Interface: 8 × OCuLink
  • HDD Interface ID: 8 × SFF-8639
  • SGPIO Interface: N/A
  • Features: Temperature Monitoring
    • 2.5-inch 8-port PCIe Gen3 NVMe Backplane

    2.5" 2-port PCIe Gen3 NVMe Backplane

  • P/N: 380-21703-0040A1
  • Dimensions (W x H): 77.0 × 80.0 (mm)
  • Backplane Type: Passive
  • HDD Interface: 2 × OCuLink
  • HDD Interface ID: 2 × SFF-8639
  • SGPIO Interface: N/A
  • Features: Temperature Monitoring
    • 2.5-inch 2-port PCIe Gen3 NVMe Backplane

    3.5" 8-port 12Gbps SAS/SATA Backplane

  • P/N: 380-21703-0150A0
  • Dimensions (W x H): 322.8 × 80.0 (mm)
  • Backplane Type: Passive
  • HDD Interface: 2 × SFF-8643
  • HDD Interface ID: 8 × SFF-8482
  • SGPIO Interface: 2 × 8-pin
  • Features: LED Blinking Pattern
    • 3.5-inch 8-port 12Gbps SAS/SATA Backplane

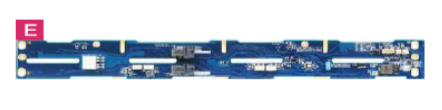

    3.5" 8-port 12Gbps SAS/SATA Backplane

  • P/N: 480-00578D0-010-G
  • Dimensions (W x H): 432.0 × 52.3 (mm)
  • Backplane Type: Passive
  • HDD Interface: 2 × SFF-8643 (MiniSAS HD)
  • HDD Interface ID: 8 × SFF-8680
  • I2C / Power: 1 × 6-pin
  • Features: Temperature Monitoring, Smart Fan Control
    • 3.5-inch 8-port 12Gbps SAS/SATA Backplane

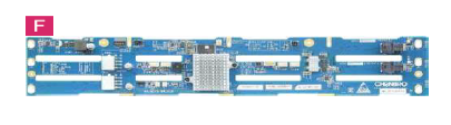

    3.5" 12-port 12Gbps SAS/SATA Backplane, Active

  • P/N: 380-21703-0040A0
  • Dimensions (W x H): 432.0 × 61.0 (mm)
  • Backplane Type: Active
  • HDD Interface: 3 × SFF-8643 (MiniSAS HD)
  • HDD Interface ID: 12 × SFF-8680
  • SGPIO Interface: 1 × SFF-8485 (2 ports)
  • I2C / Power: 1 × 6-pin
  • Features: Temperature Monitoring, Smart Fan Control
    • 3.5-inch 12-port 12Gbps SAS/SATA Backplane Active

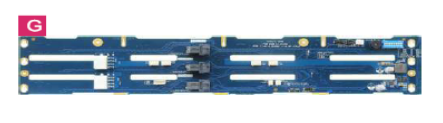

    3.5" 12-port 12Gbps SAS/SATA Backplane, Passive

  • P/N: 480-00578D0-010-G
  • Dimensions (W x H): 432.0 × 61.0 (mm)
  • Backplane Type: Passive
  • HDD Interface: 3 × SFF-8643 (MiniSAS HD)
  • HDD Interface ID: 12 × SFF-8680
  • SGPIO Interface: N/A
  • Features: Temperature Monitoring, Smart Fan Control
    • 3.5-inch 12-port 12Gbps SAS/SATA Backplane Passive
  • Manufacturer Warranty: 3 year (3/3/3) limited warranty includes 3 years of parts, labour and on-site repair. Terms and conditions vary. Certain restrictions and exclusions apply.
